Critical Tattoo® XR-D Power Supply - Advanced Unit

Critical Tattoo® XR-D Power Supply - Advanced Unit


Regular price $399.99
Regular price Sale price $399.99
Sale Sold out
Available: 42
View full details

Collapsible content


  • Precision Regulated Set Point Voltage: 0–18V DC

  • Compatible with all coil and rotary machines

  • Easy-to-read, full-color TFT display; configurable color scheme

  • Convenient touch user interface

  • Non-volatile memory ensures voltage presets are maintained even when power is removed

  • Assign jumpstart feature/maintained pedal modes to preset/output buttons

  • 0.1volt adjustment resolution

  • Oscilloscope function displays cycle time

  • Two foot pedal modes — maintained or momentary

  • Universal input (90–240AC 50/60Hz)

  • Output Voltage: 18v 36W

  • Dual outputs allow for two machines to operate at once

  • High-quality amphenol 1/4” jacks for durability and high power delivery

  • Compatible with standard clip cords and foot pedals (foot pedal not required to run)

  • Hybrid billing mode allows automated user inputs

  • Peak Current: 4 amp

  • Continuous Current: 2 amp

  • CNC-machine billet aluminum housing

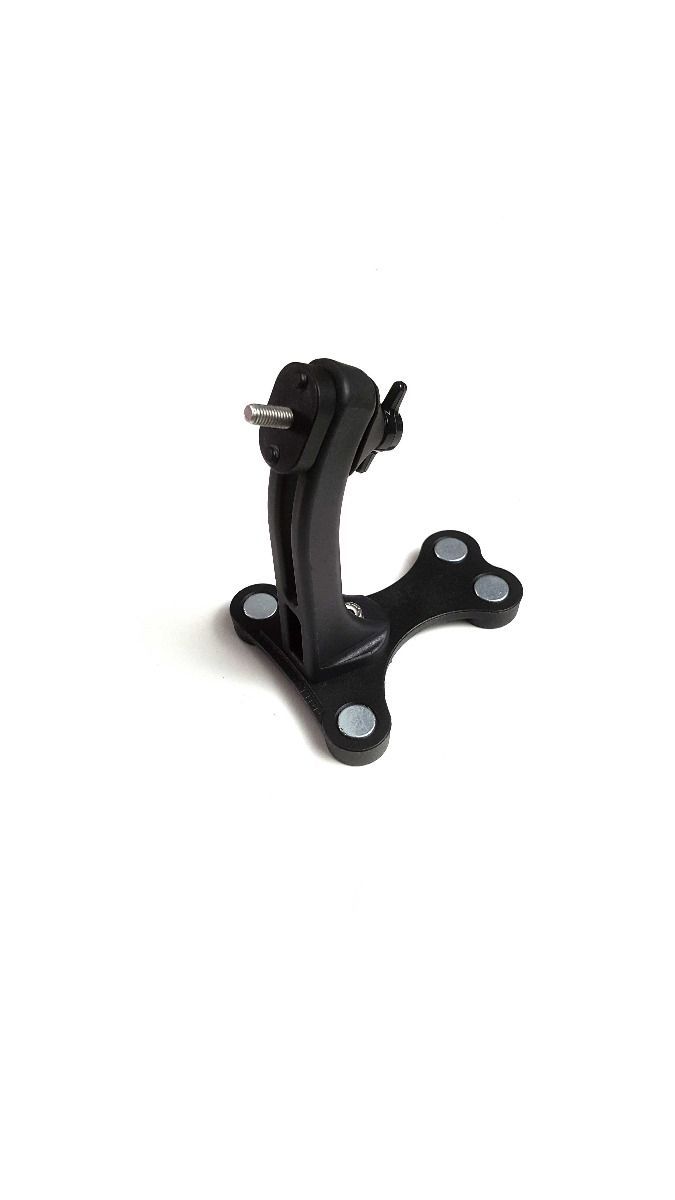

  • Equipped with magnetic mounting system for configurable set-up

  • Automatically powers down after 15 minutes of inactivity

  • Built-in short circuit protection

  • Comes with C5 type Mickey Mouse plug, magnet mounting system, a(more...)
